Rockford Fosgate R2-1200X1 Prime Series Mono Amplifier

Primed for Performance, the R2-1200X1 is a 1200 watt, class-D amplifier, capable of operating at 4Ω, 2Ω or 1Ω mono. This amplifier is extremely efficient because of its Class-D technology which reduces demand on the vehicles electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. Supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass. For subwoofers, a variable infrasonic filter and remote level control allows you to tune the bass for the desired level for the music.

The R2 models are developed for car audio fanatics that want a reliable amplifier – with all the power and performance you’ve come to expect from Rockford Fosgate – at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being “under rated,” easily surpassing all specifications, and most importantly, generating more power than their ratings. These 3rd generation of Prime Series amplifiers are refined with the latest Rockford Fosgate technology for easy setup and configuration, making them perfect for use with factory audio or custom aftermarket systems.

FEATURES AT A GLANCE

• Variable Input Gain adjustment level
• Balanced Differential Inputs with RCA Pass Through Outputs
• Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
• High Level Input Capable
• Short Circuit & Over Current Protection
• Cast aluminum heat sink
• Top Mounted Control Panel
• Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers
• Rollback Protection
• Continuously Variable On Board Punch EQ

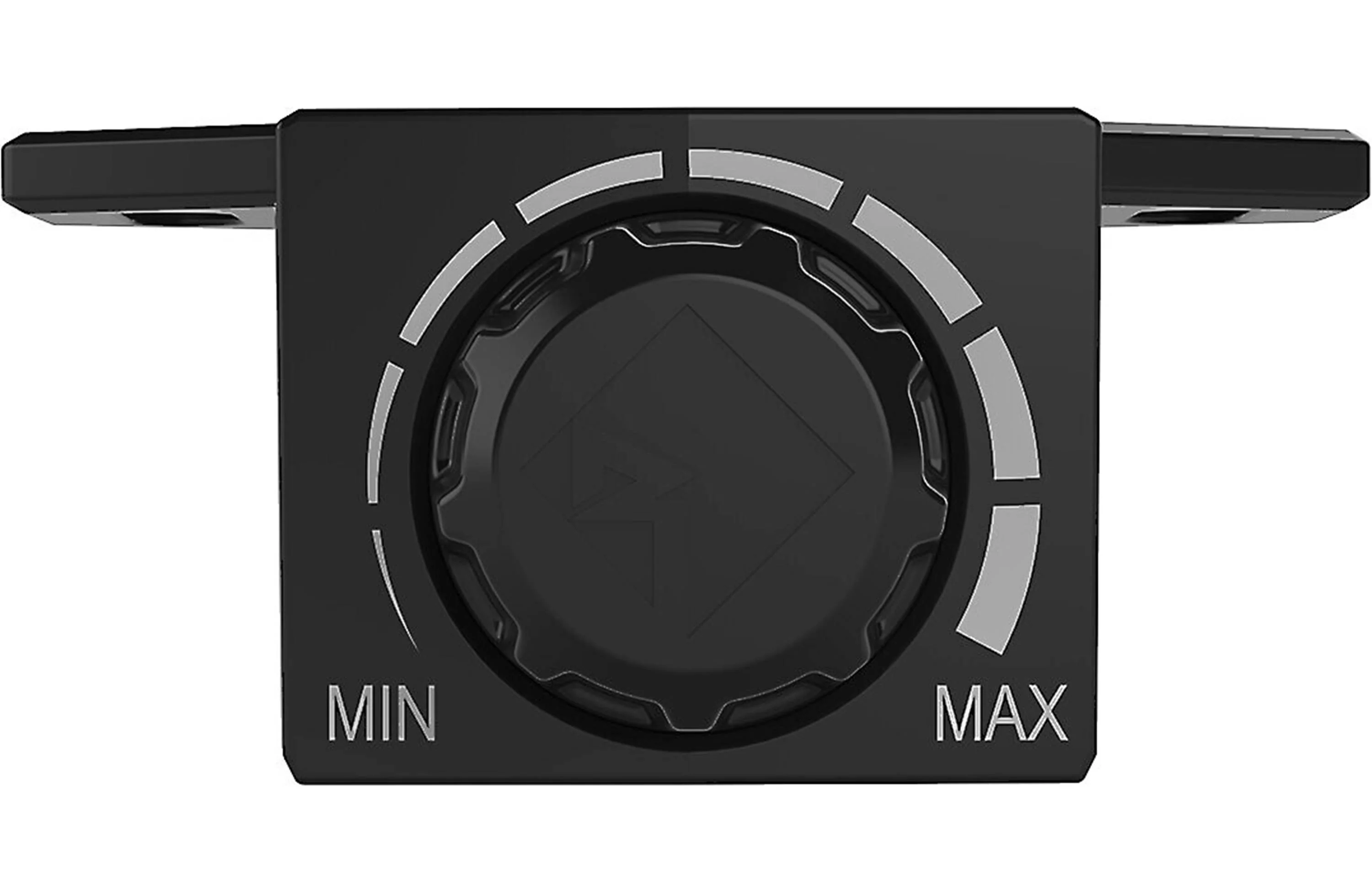

• Includes RLC Remote Level Control
• Class-D Topology
• Features C.L.E.A.N. Set-up
• 1 Year Warranty
• Variable Infrasonic Filter
• CEA-2006 Compliant & CE Compliant

Specs

RMS Power Output (Watts x Channels)    400 x 1
Peak Power Output (Watts x Channels)    N/A
Power at 2 Ohms (Watts x Channels)    800 x 1
Power at 1 Ohm (Watts x Channels)    1200 x 1
Bridged Power (Watts x Channels)    N/A
Minimum Impedance Bridged    N/A
Minimum Impedance Unbridged    1
Best Frequency Response    20-250 Hz
THD at Rated RMS Power    1%
Signal to Noise Ratio    75 dB
Input Voltage    14.5v

Amplifier Class    D
Built-in DSP    No
Remote Control    Yes
Low-Pass Crossover Frequency    50-250 Hz
Low-Pass Slope (dB/octave)    12 dB/octave
High-Pass Crossover Frequency    N/A
High-Pass Slope (dB/octave)    N/A
Bass Boost    0-18 dB
Bass Boost Frequency    45 Hz
Fan Cooled    No
Fuse Rating    200
Speaker Level Inputs    Yes
Preamp Outputs    2
Width (inches)    11-1/4
Height (inches)    2
Depth (inches)    7-3/4
