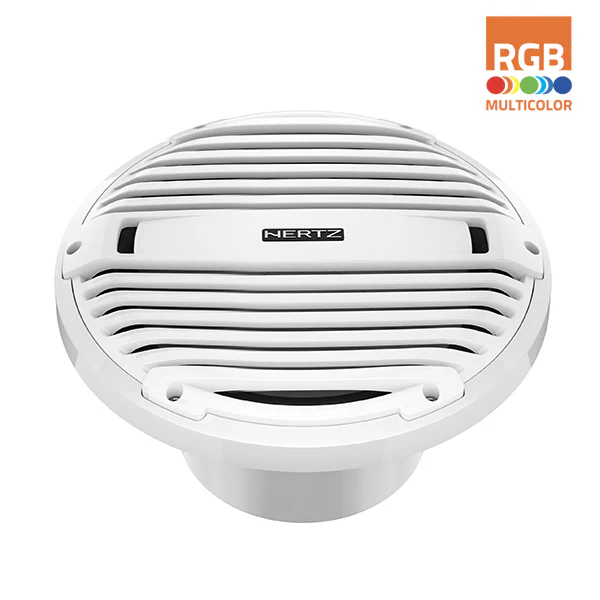

Hertz HMS 10 B4-LD-W 10" 4 Ohm Infinite Baffle Marine Subwoofer with RGB LEDs and White Grill (Each)

250 (10) mm (in.) | 116 (4.56) mm (in.) | Subwoofer | 600 W | 4 Ohm | Single Voice Coil
The HMS 10 B  long throw 10” marine subwoofer, also available in the black option HMS 10 B-C, is engineered for infinite baffle application. It relieves the main speakers from the hard work of reproducing the lowest frequency range, adding bass output and punch to maximize the overall system performance. The FEM optimized high-excursion mobile equipment of HMS 10 B with a 50 mm (2”) voice coil is driven by a massive magnetic group, to obtain a perfect control also at very high level SPL. Engineered and tested for the real environment of application (UV, salt-fog, vibrations, water spray, thermal shock, dust ) HMS 10 B4-LD-W is nature-proof. The progressive design aramid fiber spider with silicone-insulated lead wires ensures durability and constant performance over time. The gold-plated corrosion resistant brass connection terminals with silicone cap protect the leadwire junction point.

Specs

Technical Specs
Size mm (in.)    250 (10)
Power Handling - Continuous W    300
Power Handling - Peak W    600
Impedance Ohm    4
Depth mm (in.)    116 (4.56)
Voice Coil Type    single
No Filter Component    SUBWOOFER
Voice Coil Ø    50 (2)
Magnet size D x d x h mm (in.)    140 x 60 x 30 (5.51 x 2.36 x 1.18)
Weight of one component kg (lb.)    5,1 (11.24)
Magnet    High density flux ferrite
Cone    Polypropylene with UV inhibitors
Xmech mm (in.)    ±19 (0.75)

Electro-acoustic Specs
D mm    210
Xmax mm    13.5
Re Ohm    4.5
Fs Hz    41
Le mH    0.9
Vas I    37
Mms g    69
Cms mm/N    0.22
BL T*m    10.2
Qts    0.71
Qes    0.76
Qms    11
Spl dB    88
